cf Series  cartridge Filters

can offer a variety of cartridge filtration systems. These systems, consisting of vessels and internals, are used extensively in the beverage, chemical processing, cosmetic, food processing, metalworking, paint, pharmaceutical, photo-processing and virtually any other liquid processing. The product line includes also replacement cartridges to improve the efficiency and/or the economics for existing housings.

wound cartridge filters offer depth filtration over a wide range of particle removal ratings and have a high dirt holding capacity by trapping dirt in the passageways.

The advantage of this type of disposable filter cartridge is that it offers high efficiency at low cost.

CLICK ON THE IMAGE FOR SELECTION OF FILTER CARTRIDGES

Melt Blown cartridges are absolute rated depth cartridges that offer consistent production yields and quality due to the fixed pore structure and finer removal ratings for use in a wide variety of applications. They are available in absolute and nominal ratings from 120 to 1 micron.

Resin Bonded cartridges provide two-stage filtration in an innovative one-piece filter. The outer layer acts as a pre-filter trapping large particles, while the inside layer provides final filtration. Resin bonded cartridges offer nominal filtration from 125 to 2 micron.

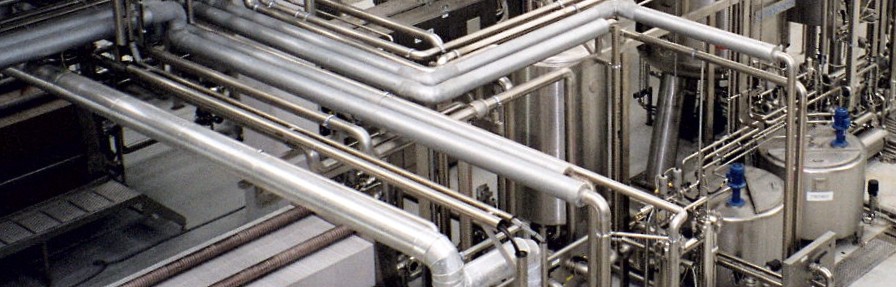

Pleated Polypropylene filter cartridges are used in beer filtration and similar applications. They are available in absolute and nominal filtration ratings from 70 to 0,3 micron. Due to the large filtration area these filters offer superior lifetime and economics.

Membrane cartridges are ideal for critical applications when high performance is necessary. Membranes offer absolute filtration from 1 to 0,03 micron!! They are available in five types of media; polyethersulfone, nylon, PTFE, polypropylene and all Teflon.

• For all commercially available types of cartridges FSI offers suitable housings for each special process or industry.

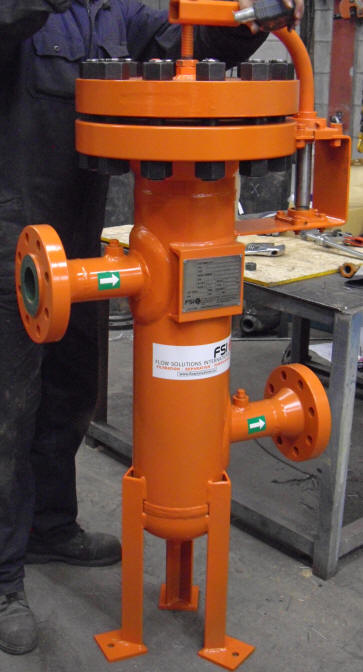

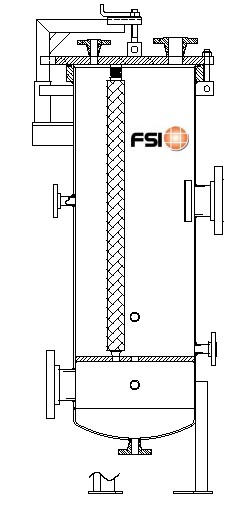

• Housings for single and multiple cartridges manufactured in carbon  steel, stainless steel and any exotic alloys Alloy20, Hastelloy, Titanium  etc.

• Special designed sanitary and aseptic housing with various types of connections are available on demand.

• All units available built to ASME Code design rules.
• Higher pressure rated vessels are available on demand.
• Vessels can be custom modified to customer specifications.

CLICK BELOW FOR

QUESTIONS OR NEED A QUOTE PLEASE EMAIL US.  [email protected]
